執行標準 Execution standard
GB/T 12706-2008
適用范圍Application
本產品適用于工頻額定電壓0.6/1kV及以下配電網或工業裝置中固定敷設之中。
This product is suitable for power frequency rated voltage 0.6/1kv and below power distribution network or fixed installation in industrial equipment.

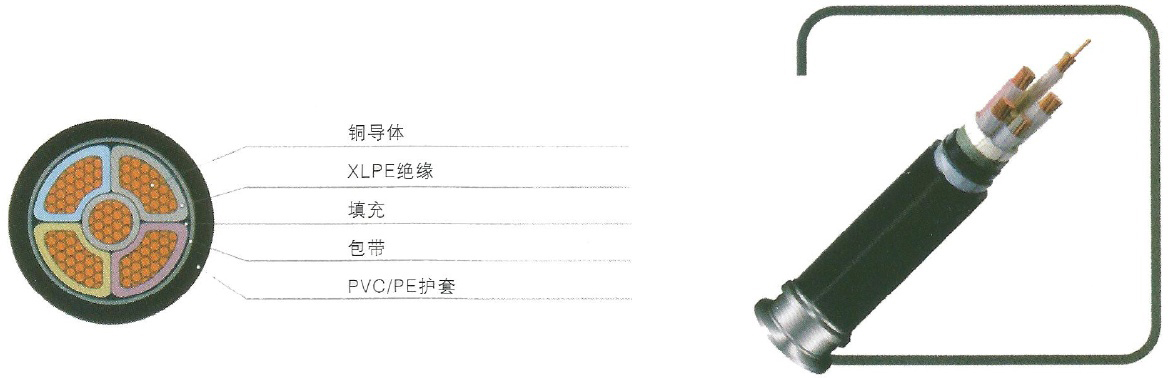

產品結構圖 Structural chart

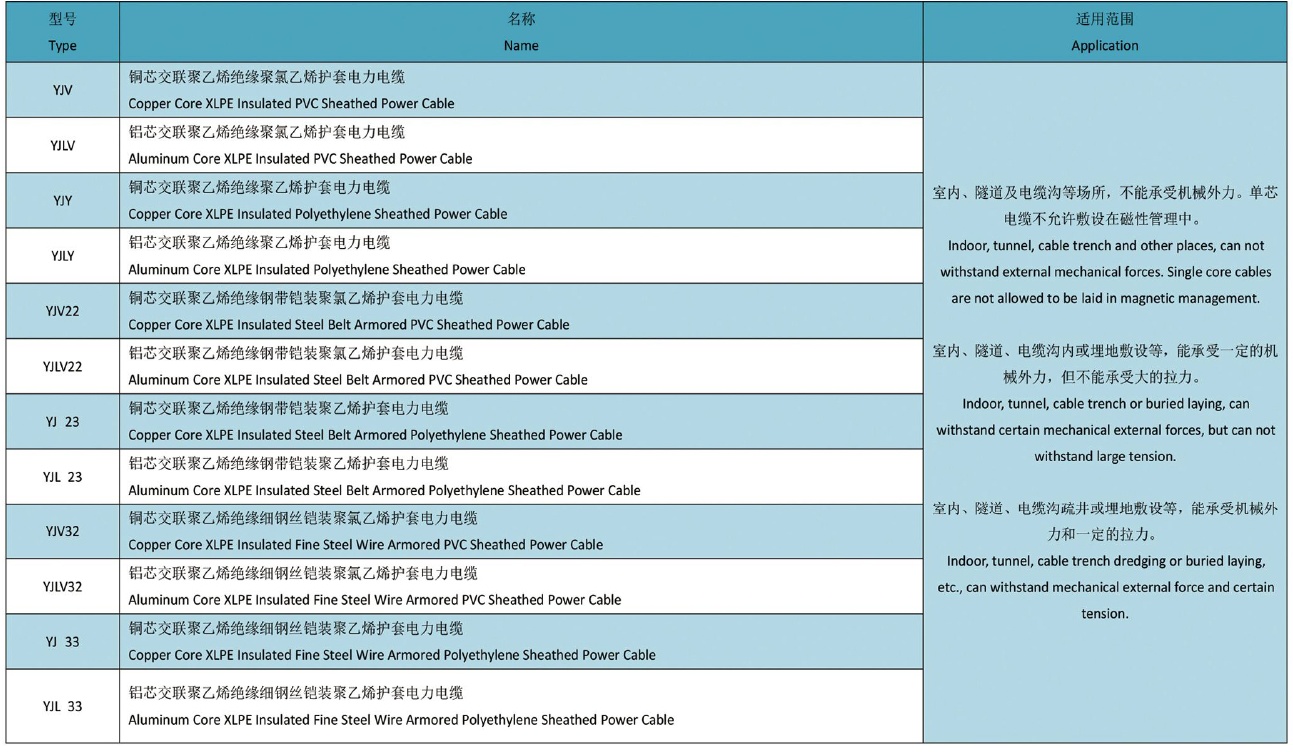

電纜型號、名稱 Type and name

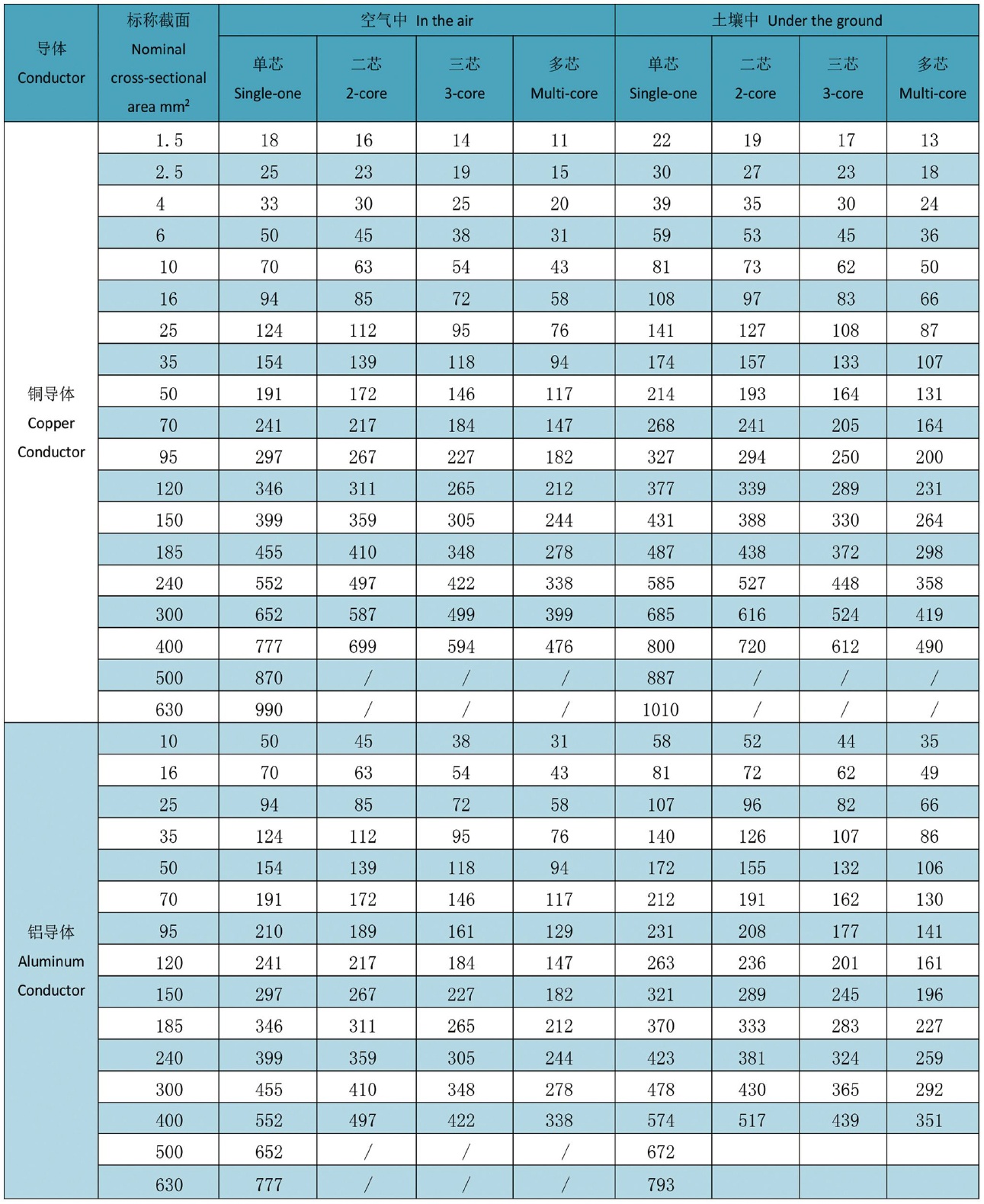

電纜載流量 Current Carrying Capacity of Cable
注：用于交流系統的單芯鋼絲鎧裝電力電纜的屏蔽銅帶及鋼絲（含所有隔磁銅絲）充分、接地。本載流量是按EC推薦公式計算的（表中數值參考上海電纜研究所馬國棟著《電線電統載流量》）。新版GB/T12706認為單芯結構鋼絲繼裝電力電纜實際載流量比IEC推薦載流量大為降低，截面選擇宜適當放大。
電纜敷設運行條件Operating Conditions for Cable Laying
在空氣中敷設
1.單芯電纜平行敷設時中心距離：185mm/及以下為電纜直徑的2倍；240mm/及以上為90mm.
2.周?chē)h(huán)境空氣溫度：30℃.
3.導體的長期高工作溫度：90℃.
In air
1.The center distance of single-core cable laying in parallel:185mm/below is twice the diameter of cable; 240mm/above is 90mm.
2.ambient air temperature:30C.
3.The longest working temperature of 3.conductor is 90C.

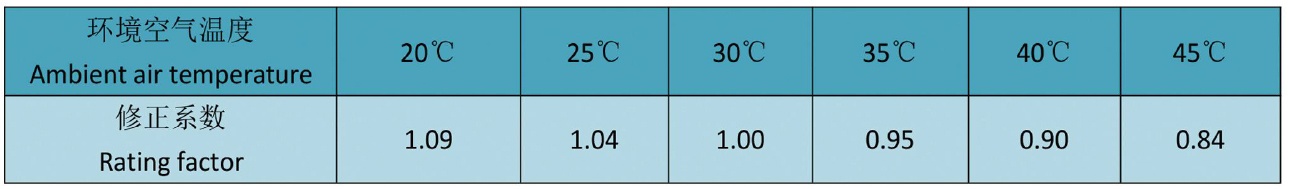

不同環境溫度下載流量的修正系數：
Curent carying rating factors for different ambient air temperature
在空氣中敷設
1.單芯電纜平行敷設時中心距離：185mm/及以下為電纜直徑的2倍；240mm/及以上為90mm.
2.周?chē)h(huán)境空氣溫度：30℃.
3.導體的長期高工作溫度：90℃.
1.The center distance of single-core cable laying in parallel:185mm/below is twice the diameter of cable; 240mm/above is 90mm.
2.ambient air temperature:30C.
3.The longest working temperature of 3.conductor is 90 C.
不同環境溫度下載流量的修正系數：
Curent carrying rating factors for different ambient air temperature
